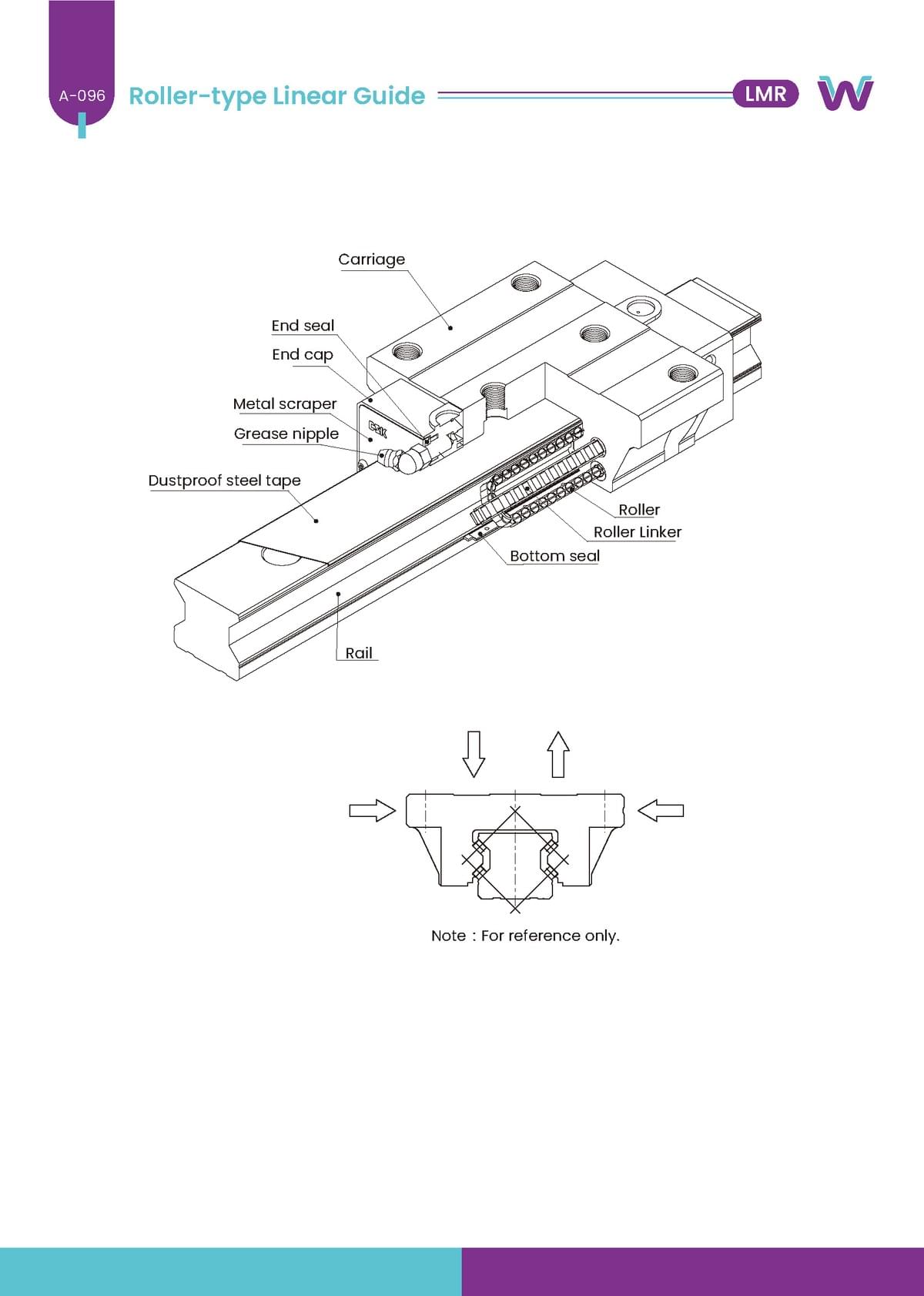

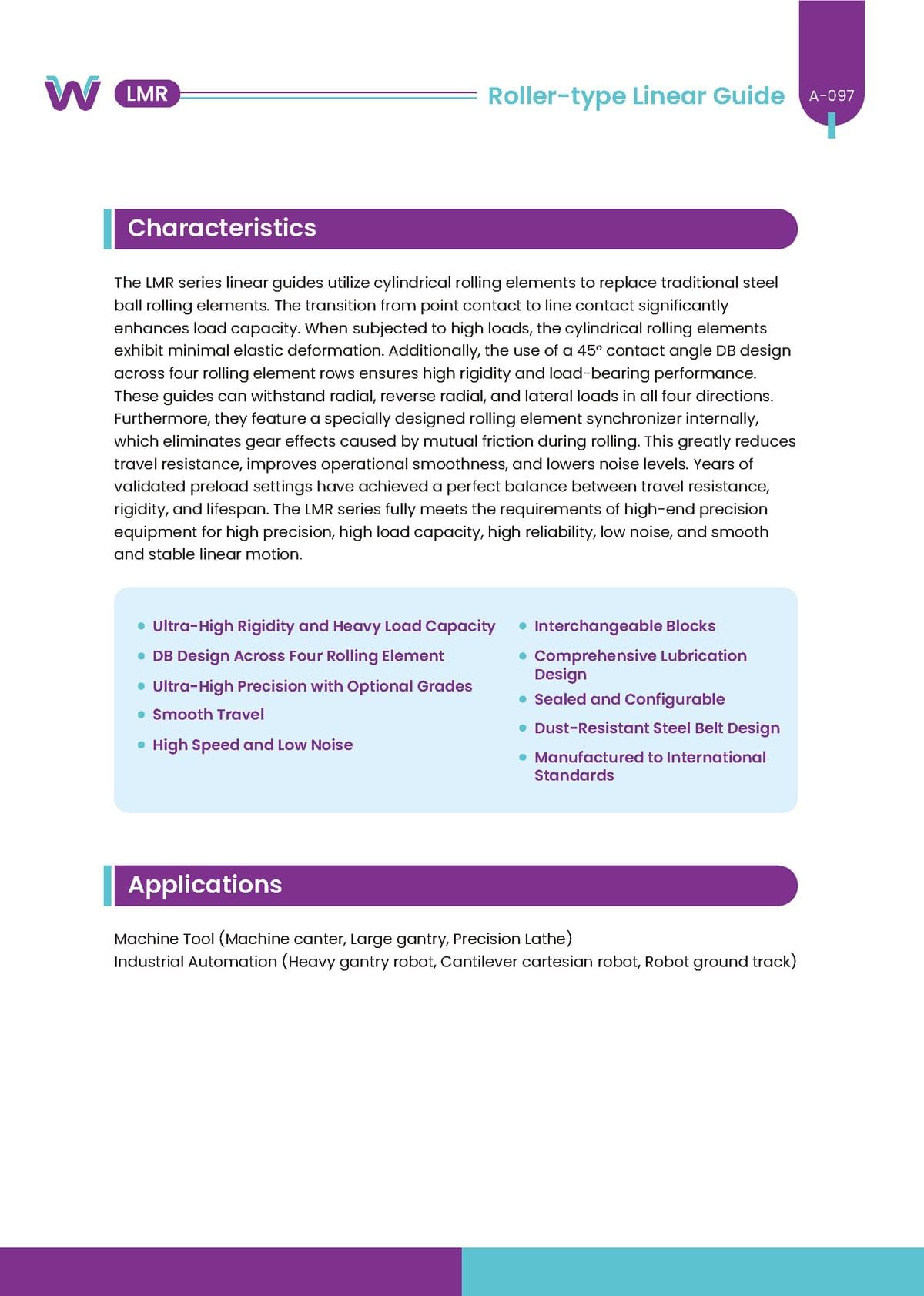

The LMR series linear guides utilize cylindrical rolling elements to replace traditional steel ball rolling elements. The transition from point contact to line contact significantly
enhances load capacity. When subjected to high loads, the cylindrical rolling elements exhibit minimal elastic deformation. Additionally, the use of a 45° contact angle DB design
across four rolling element rows ensures high rigidity and load-bearing performance.

These guides can withstand radial, reverse radial, and lateral loads in all four directions. Furthermore, they feature a specially designed rolling element synchronizer internally,
which eliminates gear effects caused by mutual friction during rolling. This greatly reduces travel resistance, improves operational smoothness, and lowers noise levels. Years of
validated preload settings have achieved a perfect balance between travel resistance, rigidity, and lifespan.

The LMR series fully meets the requirements of high-end precision equipment for high precision, high load capacity, high reliability, low noise, and smooth and stable linear motion.
